Product Description: Moonshine Horsepower 135 Cubic Inch Piston and Cylinder Kit

Elevate your Harley-Davidson engine's performance with our Moonshine Horsepower 135 Cubic Inch Piston and Cylinder Kit, 4.375" Bore, 4.500" Stroke. Engineered for enthusiasts seeking unparalleled power and reliability, this kit is the epitome of precision and performance engineering.

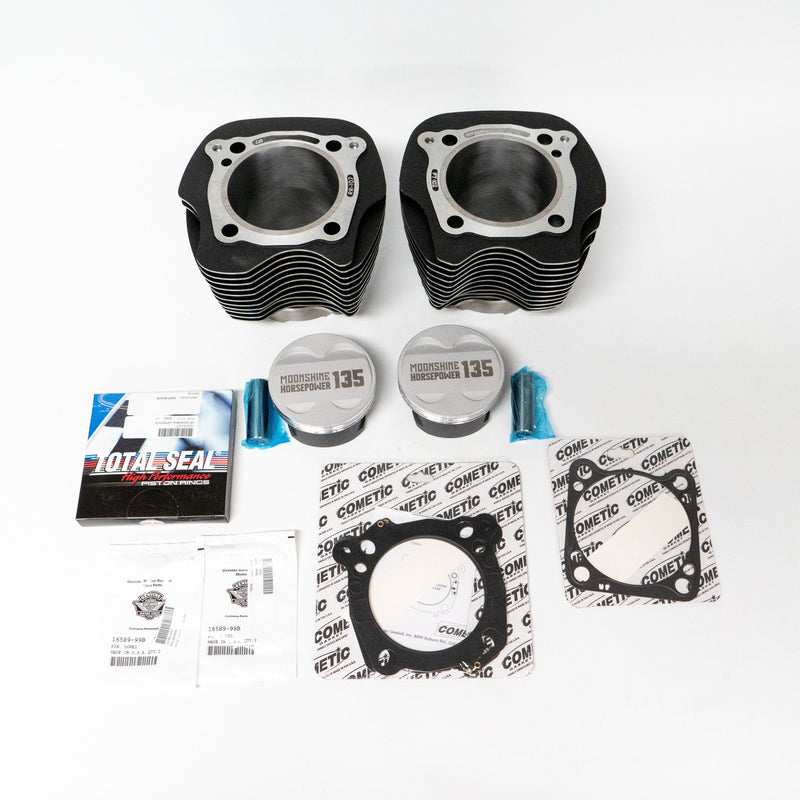

Key Features:

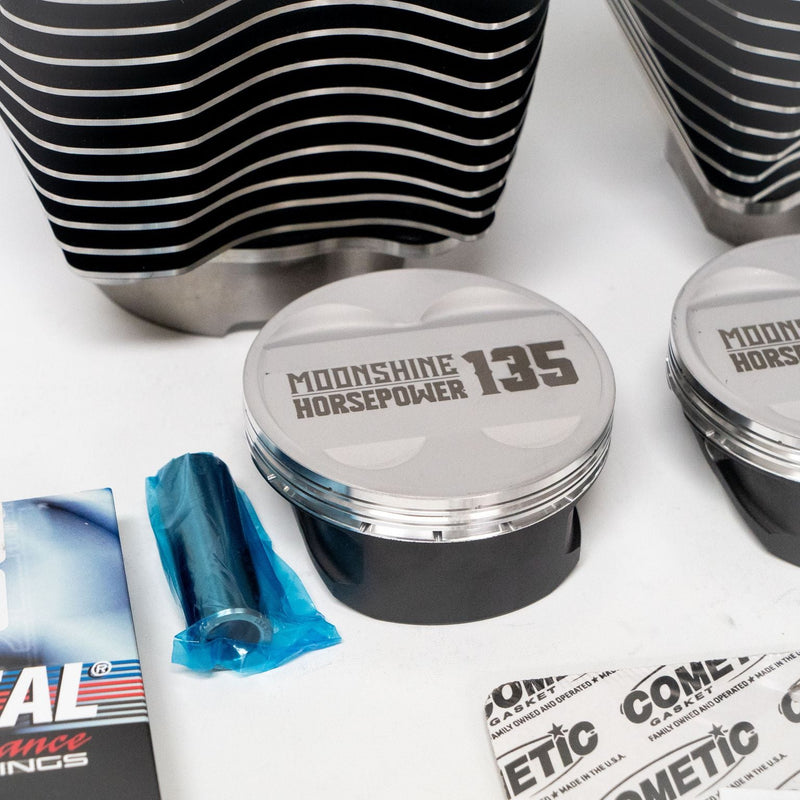

  • MHP Lightweight CP Pistons: Specifically designed 4.375" Bore pistons with 6.17cc dome for optimal combustion efficiency. Features include lateral gas ports, a kellered dome for superior flame propagation, and CNC underhead milling to reduce weight, ensuring swift, responsive acceleration.

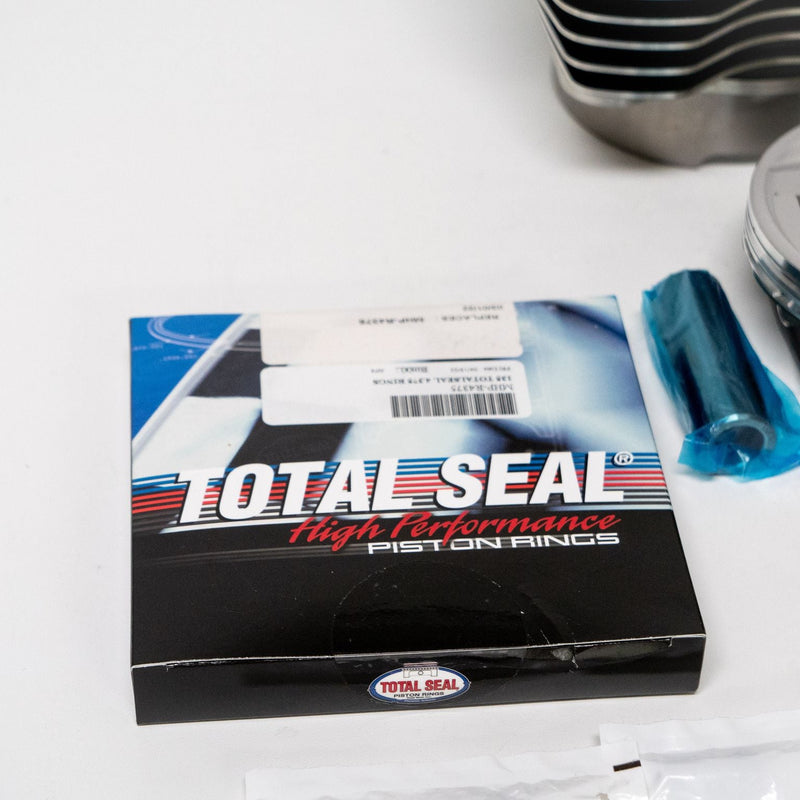

  • Total Seal Piston Rings: Equipped with state-of-the-art .9mm AP Plus Stainless-Steel Top Rings coated with a dry film lubricant for exceptional anti-scuff protection. Coupled with .9mm stainless steel Napier 2nd rings and 3mm oil control rings, these ensure maximum sealing efficiency and longevity.

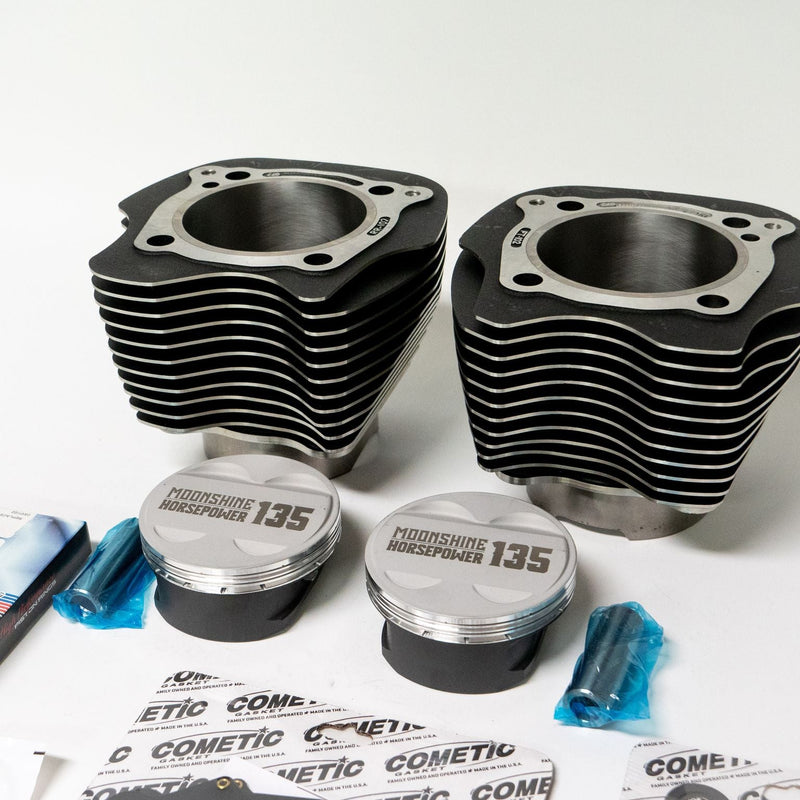

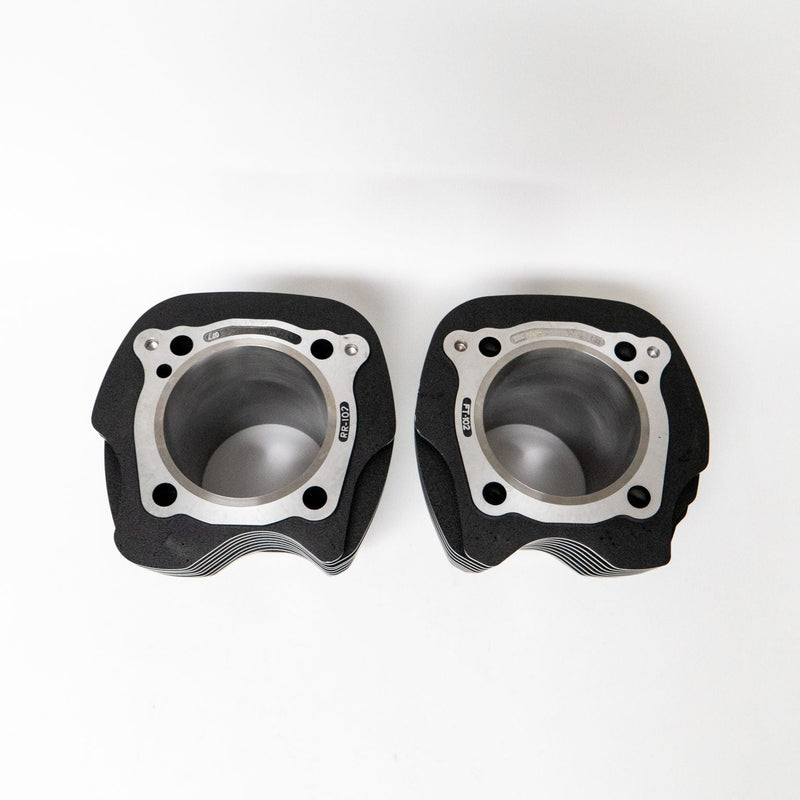

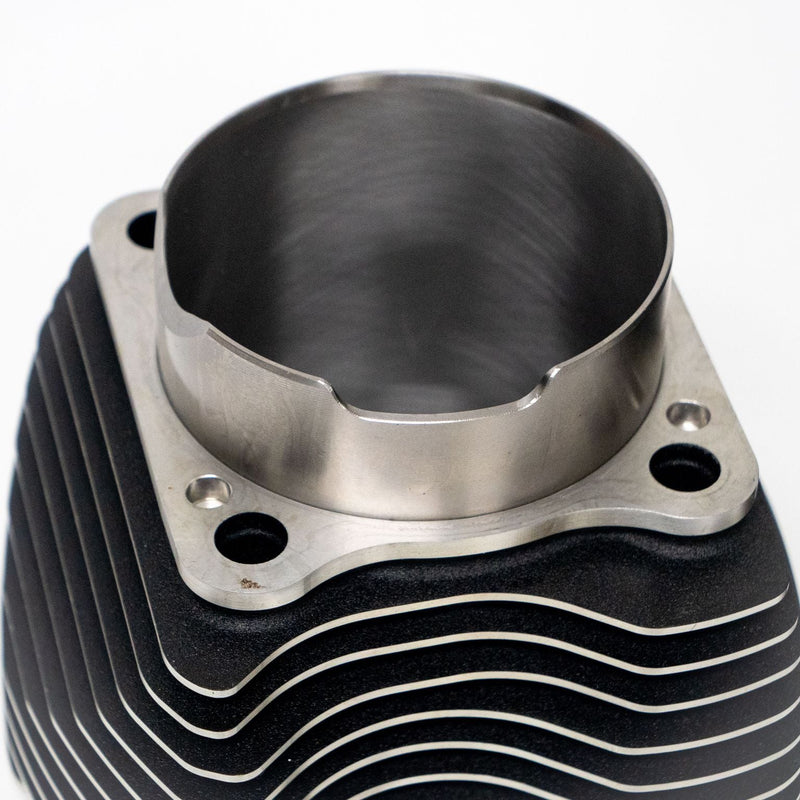

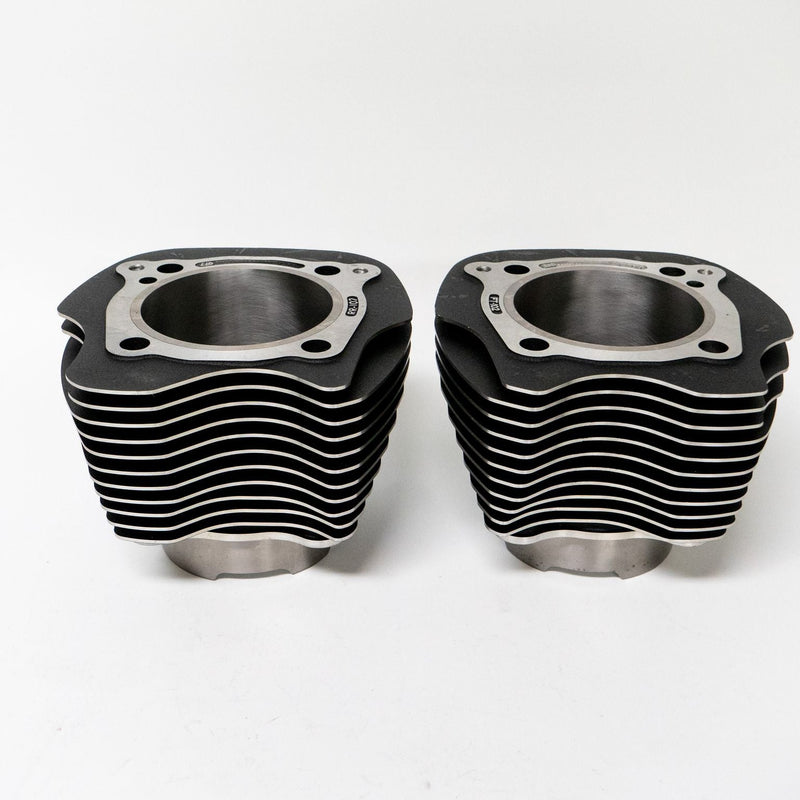

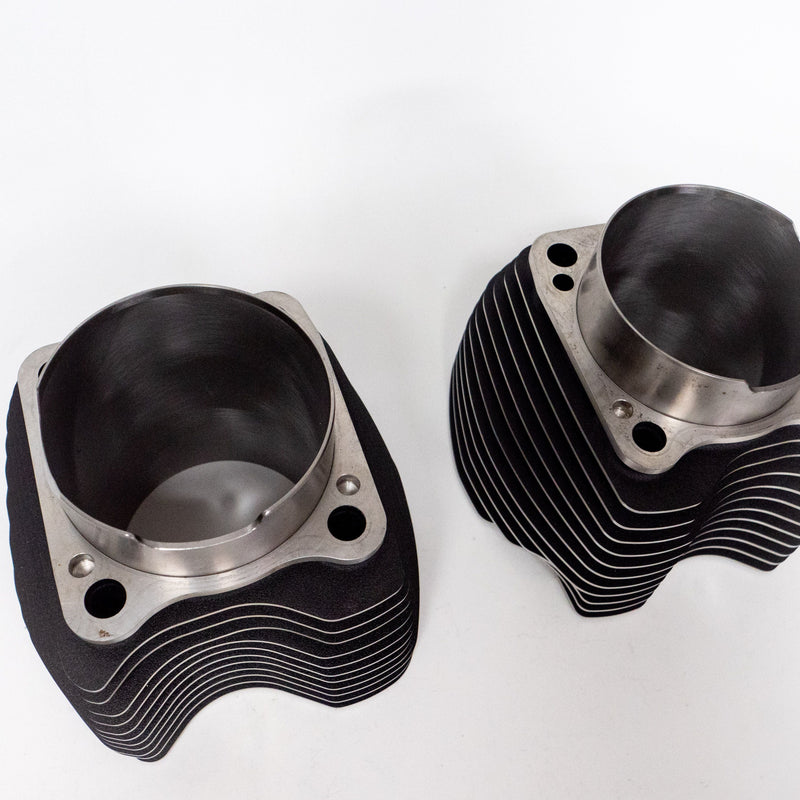

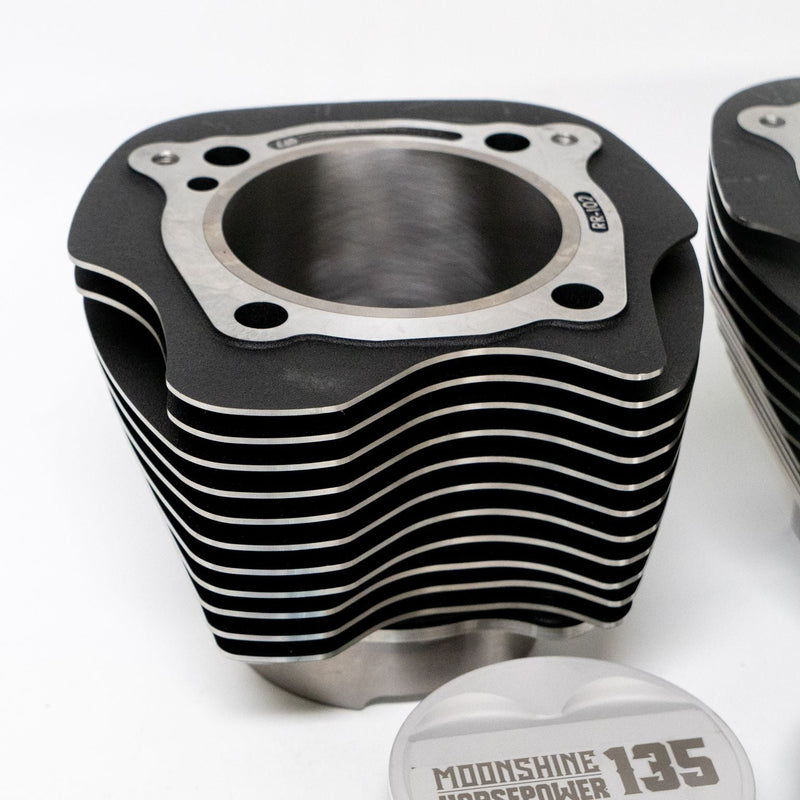

  • Moonshine Horsepower Monster Cylinders: These are not just cylinders; they're a testament to engineering excellence. Integrated with Darton Top Fuel Ductile Iron sleeves, which boast a 0.113" thickness and a 1.450" spigot length, providing robust piston support for enduring high-performance demands.

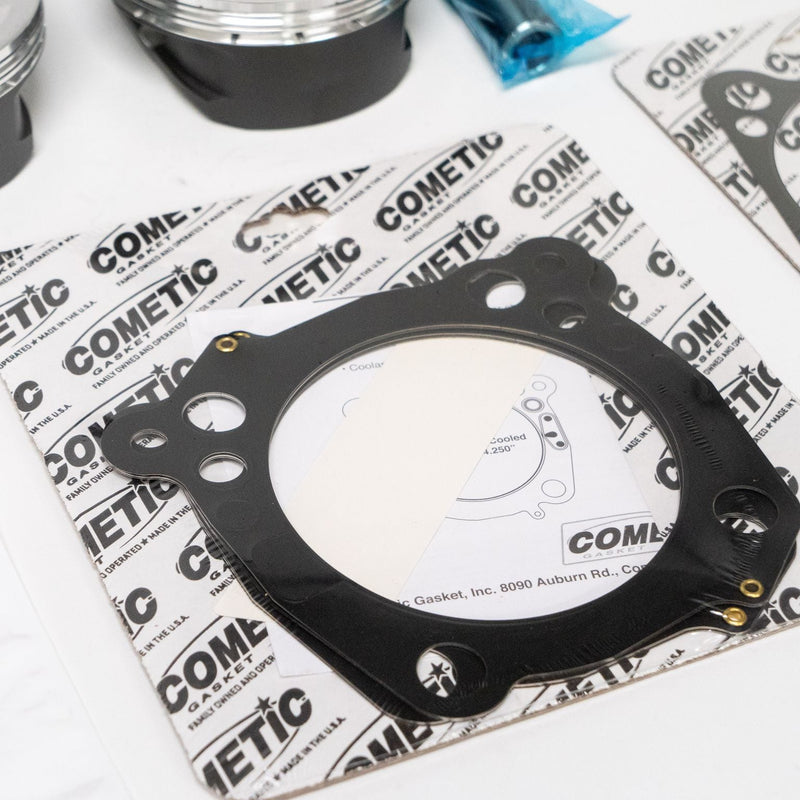

  • Cometic MLX Head Gaskets: Precision-engineered .040" MLX head gaskets from Cometic ensure a perfect seal, optimizing compression and power output while maintaining engine integrity under extreme conditions.

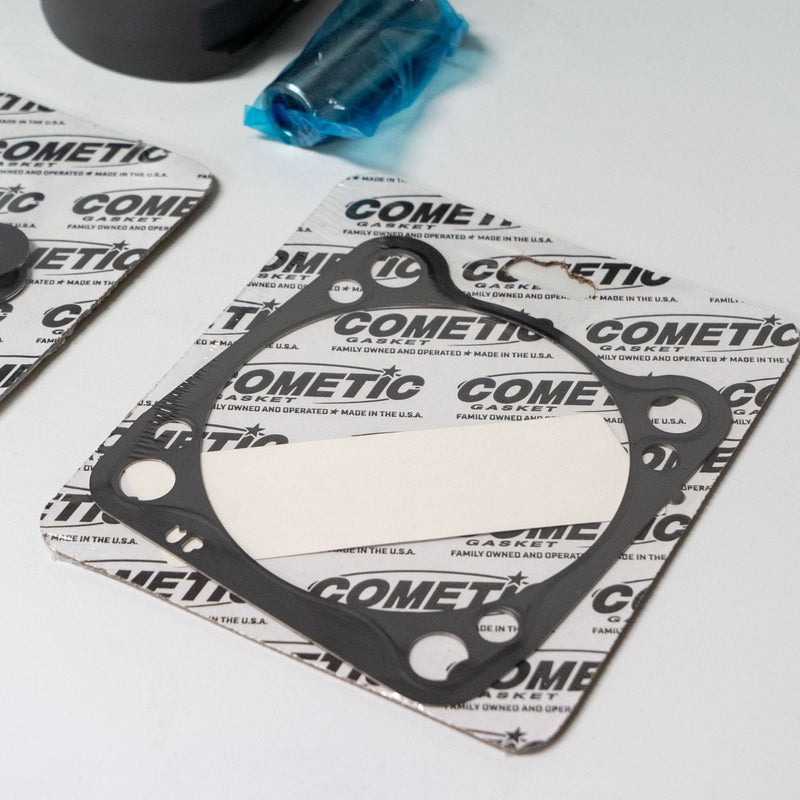

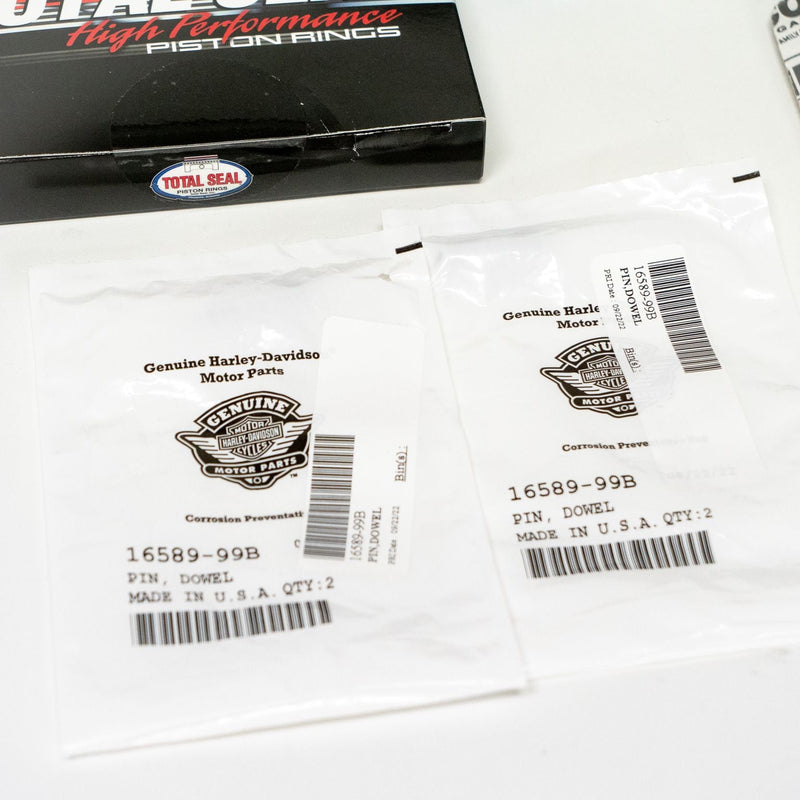

  • Cometic Base Gaskets and Harley-Davidson Dowel Pins: Perfectly paired with our setup, these ensure a secure and stable engine assembly, crucial for maintaining performance consistency.
  • Installation Requirements: This kit requires case boring, tailored for the 4.500" stroke flywheel.
  • Performance Highlights: Designed for endurance with the ability to produce exceptional horsepower. The static compression ratio varies with head type: 12.1:1 with 95cc heads and 12.42:1 with 92cc heads.

Designed for Distance: The Moonshine Horsepower 135 Cubic Inch Kit is not just about raw power; it's about going the distance. Whether you're cruising the open road or tearing up the track, this kit delivers the performance you demand with the durability you need.

Upgrade your ride today with the Moonshine Horsepower 135 Cubic Inch Piston and Cylinder Kit and experience the difference precision engineering makes in every ride.

Please note that professional installation is recommended for this high-performance kit to ensure optimal performance and longevity.

Prop 65 WarningWARNING

FITMENT:

Milwaukee Eight 17 - 24

Disclaimer: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION CONTROLLED MOTOR VEHICLE. Not legal for sale or use on any EPA pollution-controlled motor vehicle.
